Raymarine CAM210 Day & Night IP Marine Bullet Camera [E70346]

Name: Raymarine CAM210 Day & Night IP Marine Bullet Camera [E70346]
Brand: Raymarine
SKU: EM-61740
Price: 835.99 USD
Availability: InStock

$835.99 $914.99

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. Installed or used products, clearance or final-sale items are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the continental United States only. Orders are processed same day if placed before 3pm CST. or within 1 business days if placed after 3pm CST, excluding weekends and holidays. Learn more.

Description

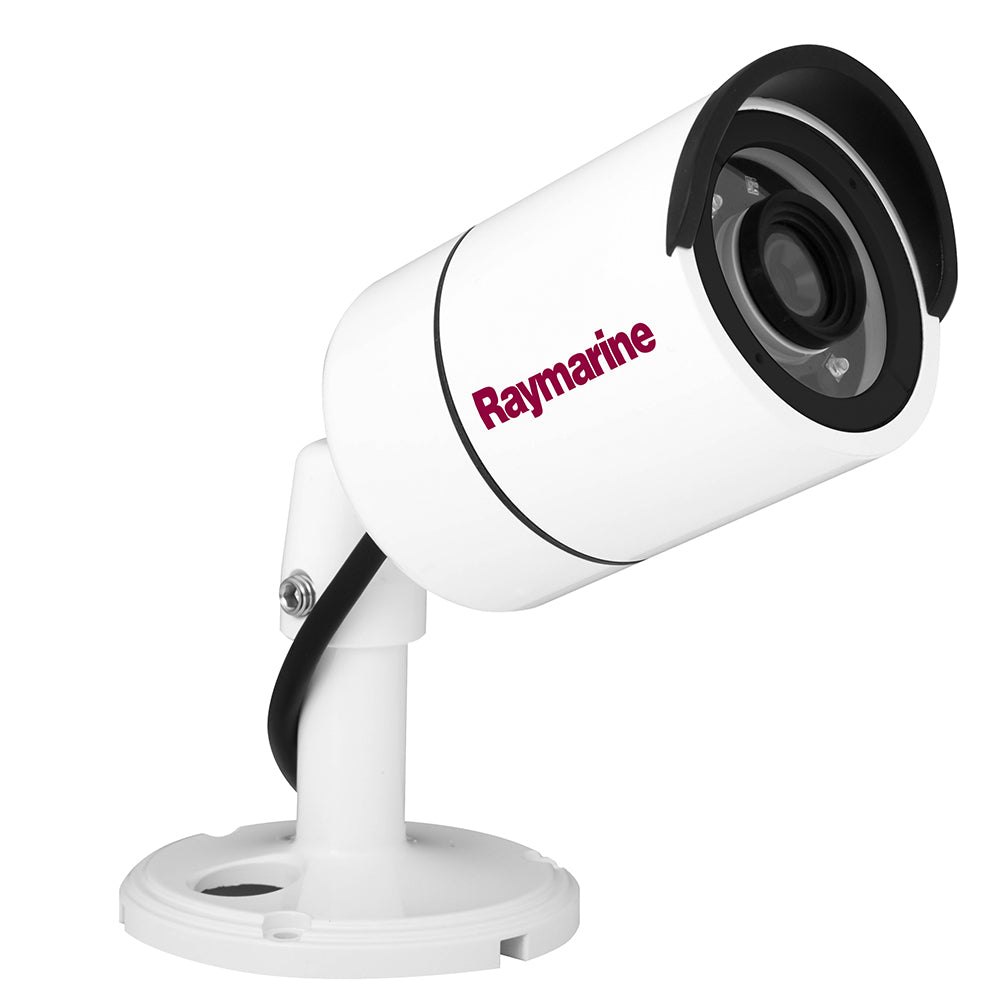

CAM210 Day & Night IP Marine Bullet Camera

Ruggedised, High Definition, Day and Night network bullet video camera suitable for all above deck applications. Integrated sun-cover for maximum visibility and small frame size for easy installation anywhere on the boat.

Plug and play integration with Raymarine MFD's running Lighthouse II
Power over Ethernet (PoE) or direct 12V DC power supply
High bright IR LEDs for operation in total darkness
Digital Defog processing improves the captured image in poor weather conditions (such as smog, fog or smoke)
Intelligent IR technology for clear video images at night in all conditions

Specifications:

CPU: 32-bit ARM9 RISC CPU up to 432MHz
Flash / SDRAM: 128MB / 128MB
Image Sensor: 2.0 Megapixel 1/2.8" SONY progressive scan CMOS(Exmor)
Total Pixels: 1952(H) x 1116(V) 2.18 Megapixel
Effective Pixels: 1944(H) x 1104(V) 2.15 Megapixel
S/N Ratio: More than 50dB
Minimum Illumination: 0Lux (IR On)
IR Distance: 20M
Day & Night: ICR
Lens: 6.0mm Megapixel Board Lens
Field of View:
Diagonal = 63.6° +/- 3°
Horizontal = 53.3° +/- 3°
Vertical = 33.1° +/- 3°
Video Compression: H.264 High Profile@4.0, MJPEG Image quality: 3 Steps
Resolution: Up to 1920 x 1080 (Full HD)
Frame Rate: H.264 Up to 30fps with 1920x1080 | MJPEG Up to 30fps with VGA resolution
Video Streaming:
Support multi stream with H.264, MJPEG
Adjustable frame rate
CVBR/CBR in H.264
Pan / Tilt / Zoom: Digital Pan, Tilt and Zoom
Image Setting:
Day & Night
Auto White Balance
Auto Exposure
Privacy Mask
Effects - Color, Sharpness, Mirror / V-Flip
Security: Password protection, User access log, HTTPS encryption
Supported Protocol: HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP
Intelligent Video: Motion detection up to 1920x1080 with 4x3 blocks
Power Source: DC12V/1.5A, PoE(Power over Ethernet): 802.3af
Power Consumption: Max. 3.3W, Max. 5.3W with IR
Net Weight: 900g
LED's: Power, Network Connection
Dimensions: 83.8mm(W) x 155mm(H) x 178.1mm(D) including Bracket
General Operation Temperature: 0°40° Celsius(32F104F)
Storage Temperature: -10°50° Celsius(14F122F)
