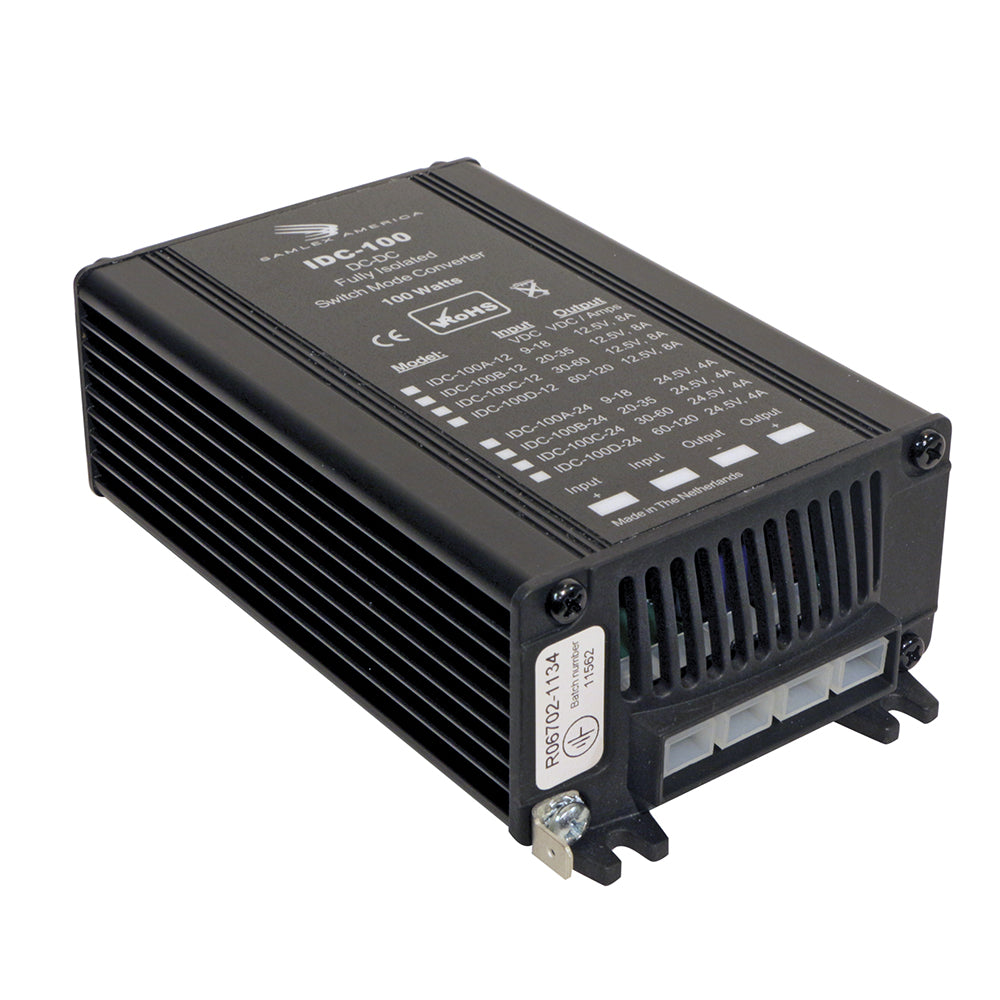

Samlex 100W Fully Isolated DC-DC Converter - 4A - 9-18V Input - 24V Output [IDC-100A-24]

Name: Samlex 100W Fully Isolated DC-DC Converter - 4A - 9-18V Input - 24V Output [IDC-100A-24]
Brand: Samlex America
SKU: EM-67255
Price: 178.80 USD
Availability: OutOfStock

$178.80 $223.40

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. Installed or used products, clearance or final-sale items are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the continental United States only. Orders are processed same day if placed before 3pm CST. or within 1 business days if placed after 3pm CST, excluding weekends and holidays. Learn more.

Description

100W Fully Isolated DC-DC Converter - 4A - 9-18V Input - 24V Output

IDC-100 series is a complete line of high efficiency 100 Watt isolated DC-DC converters suitable for applications requiring galvanic isolation between the input and the output. IDC-100A-24 isolated DC-DC converter provides a highly regulated output DC voltage of 24.5 Volts for an input DC voltage range of 9-18 Volts and rated output current of 4 Amps (at 18 Volts input). Features of this isolated DC-DC converter include compact housing, fold-back current limiting and protection against short circuit, overheating, overvoltage and reverse polarity connection. The unit comes with 1/4” push-on flat blade “quick disconnect” connectors. IDC-100A-24 isolated DC-DC converter is EMI/EMC compliant and conforms to European standards EN50081-1 (for EMI), EN50082-1 (for EMC) and the European Automotive Directive 95/54/CE.

Features:

Fully Isolated
Short Circuit Protected
Current Limited
CE Approved
2 Year Warranty

Specifications:

Input: 9.2-18 VDC
Output: 24 VDC
Watts: 100
Amps: 4 Amps
Weight: 1.2 (lbs)
Weight: 0.54 (kg)
Dimensions: 6 x 3.5 x 1.9 (in)
Dimensions: 15.2 x 8.9 x 4.8 (cm)
Safety: CE
Warranty: 2 Year Limited

Applications:

Earth moving equipment
Heavy trucks
Buses
Marine vehicles
CB radios
24 Volt lighting systems
AM/FM sound systems
