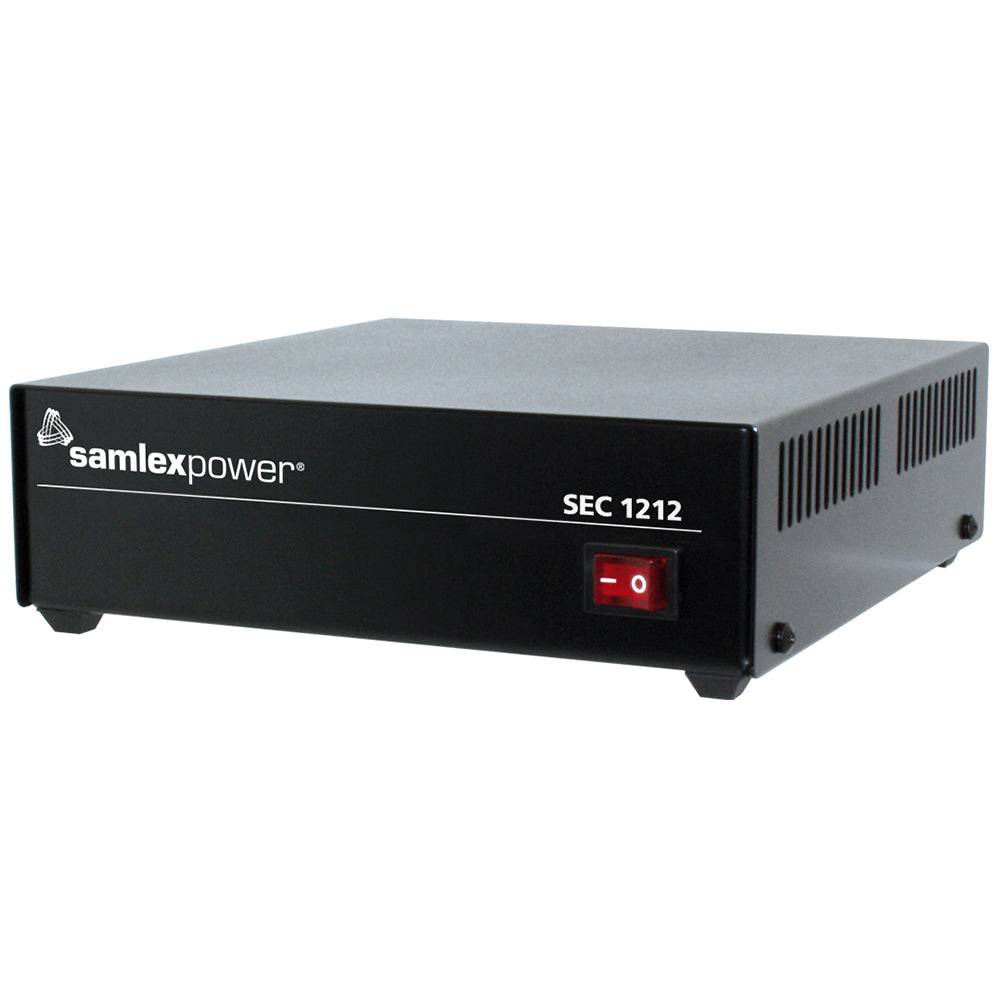

Samlex Desktop Switching Power Supply - 120VAC Input, 12V Output, 10 Amp [SEC-1212]

Name: Samlex Desktop Switching Power Supply - 120VAC Input, 12V Output, 10 Amp [SEC-1212]
Brand: Samlex America
SKU: EM-68702
Price: 153.00 USD
Availability: InStock

$153.00 $191.20

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. Installed or used products, clearance or final-sale items are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the continental United States only. Orders are processed same day if placed before 3pm CST. or within 1 business days if placed after 3pm CST, excluding weekends and holidays. Learn more.

Description

Desktop Switching Power Supply - 120VAC Input, 12V Output, 10 Amp

This high efficiency UL-60950-1 approved AC-DC power converter provides a highly regulated output DC voltage of 13.8 Volts at 10 Amps with an AC input of 120 Volts, 60 Hz (230 Volts, 50 Hz model also available). These advanced switch-mode DC power supplies were designed specifically for use with land mobile radio. The power supplies produce clean reliable power and are highly filtered to suppress RFI. The unit comes with a detachable power supply cord with NEMA 5-15P plug. Features include over-current, short-circuit and over-voltage protection. The AC-DC power supply conforms to FCC Part 15(B), class B digital device.

Features:

Advanced switch-mode technology
Reliable power with minimum weight and size
Circuit innovations minimize output voltage ripple and RFI
Input voltage can be set at 120VAC or 240VAC (internal jumper)
UL listed to both USA & Canadian safety standards

Specifications:

Input: 100-130 VAC
Output: 13.8 VDC
Amps: 10 Amps
Fuse: 3 Amps
Weight: 3.4 (lbs)
Weight: 1.54 (kg)
Dimensions: 8.19 x 7.28 x 2.4 (in)
Dimensions: 20.8 x 18.5 x 6.1 (cm)
Safety: UL, FCC
Warranty: 3 Year Limited

Applications:

Two way radio base stations
Communications systems
Security systems
Test equipment
Plotters
GPS receivers
Automotive & Marine displays
DC computers
12 Volt lighting systems
OEM applications
