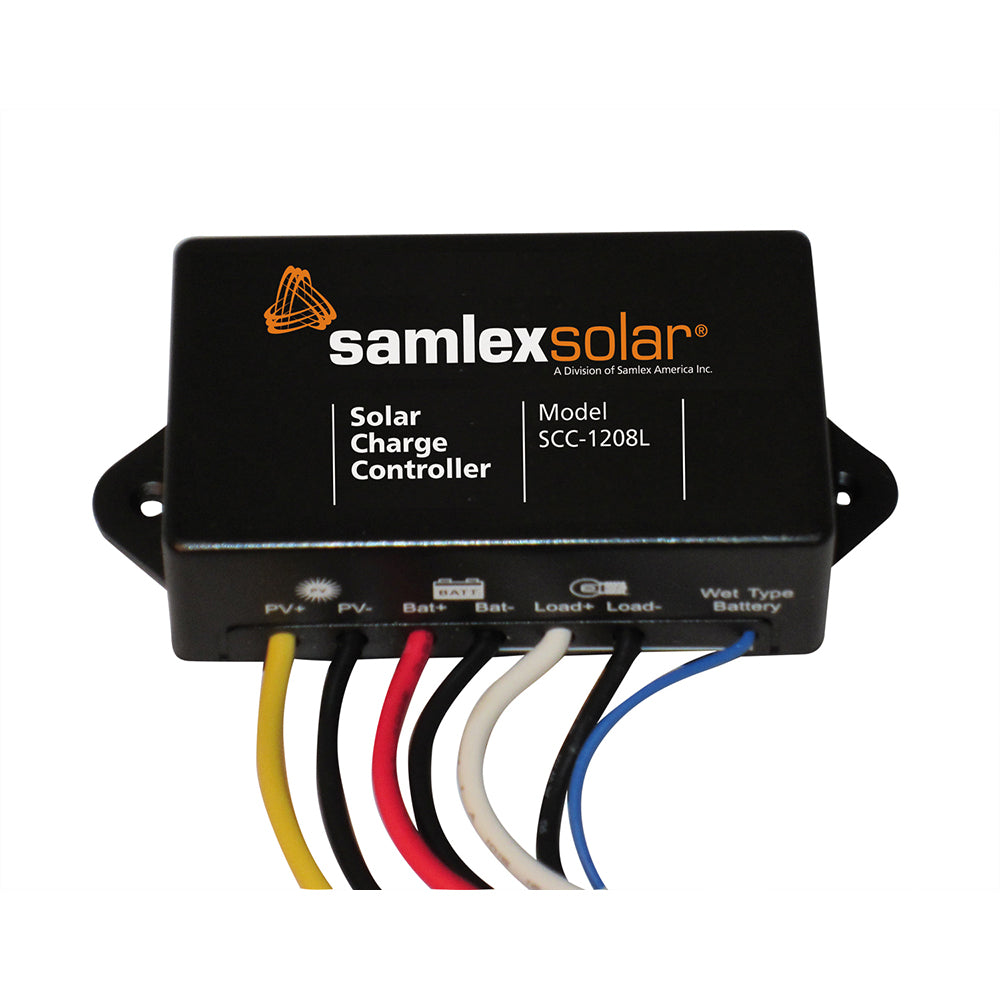

Samlex Solar Charge Controller - 12V - 8A [SCC-1208L]

Name: Samlex Solar Charge Controller - 12V - 8A [SCC-1208L]
Brand: Samlex America
SKU: EM-68833
Price: 65.60 USD
Availability: InStock

$65.60 $81.90

Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. Installed or used products, clearance or final-sale items are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the continental United States only. Orders are processed same day if placed before 3pm CST. or within 1 business days if placed after 3pm CST, excluding weekends and holidays. Learn more.

Description

Solar Charge Controller - 12V - 8A

The SCC-1208L Charge Controller is Micro-controller based for automatic, intelligent operation designed for 12 V nominal solar panels and 12 V battery systems. It has 3 Stage charging (Bulk, Absorption, Float) for 100% return of capacity and long battery life. It can be used with 2 types of batteries: Flooded/Web Cell or Sealed AGM. The SCC-1208L can manage up to 150 Watts of Solar Power.

Features:

Micro-controller based for automatic, intelligent operation
Designed for 12V nominal solar panels and 12V battery systems
3 Stage charging (Bulk, Absorption, Float) for 100% return of capacity and long battery life
For use with 2 types of batteries: Flooded/Wet Cell or Sealed AGM
Totally sealed, splash proof weather resistant design (Ingress Protection Rating IP65)
Automatically turns on lights when dark and turns off during the day
Mosfet based reverse current blocking prevents night-time battery discharge and lowers power loss
Protections: Overload, Over-Temperature, Battery Under/Over Voltage, Reverse Polarity
Wide operating temperature range of -40°C to + 60°C

Specifications:

Input: 12V
Amps: 8 Amps
Weight: 0.28 (lbs) / 0.13 (kg)
Dimensions: 3.8 x 1.8 x 1.0 (in)
Dimensions: 9.65 x 4.57 x 2.54 (cm)
Safety: FCC, CE, IP65
Warranty: 5 Year Limited

Applications:

Off-grid mobile rural systems
Rural electrification
Power supply for remote equipment
Monitoring systems for the oil & gas industry
Traffic, security, environment, and other remote monitoring and signaling systems
Water pumping systems
