Simrad  |  SKU: EM-62224  |  Barcode: 9420024155639

Simrad NAC-2 Autopilot Core Pack - NAC-2, Precision-9, RF25N & N2k Starter Kit [000-13335-001]

Regular price $1,749.00

SHIPS SAME DAY BEFORE 3PM CST! Shipping Policy


Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. The following items are not eligible for return: Installed or used products, clearance or final-sale items, trolling motors, programmed AIS units, KVH Starlink products that are registered or opened, special-order products, or products displaying the notice “This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.” in their description. Opened or unsealed DVDs, CDs, or cartography (unless defective) are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the contiguous United States only. Orders are typically processed same day if placed before 3pm CST, excluding weekends and holidays. Learn more.

Product Details

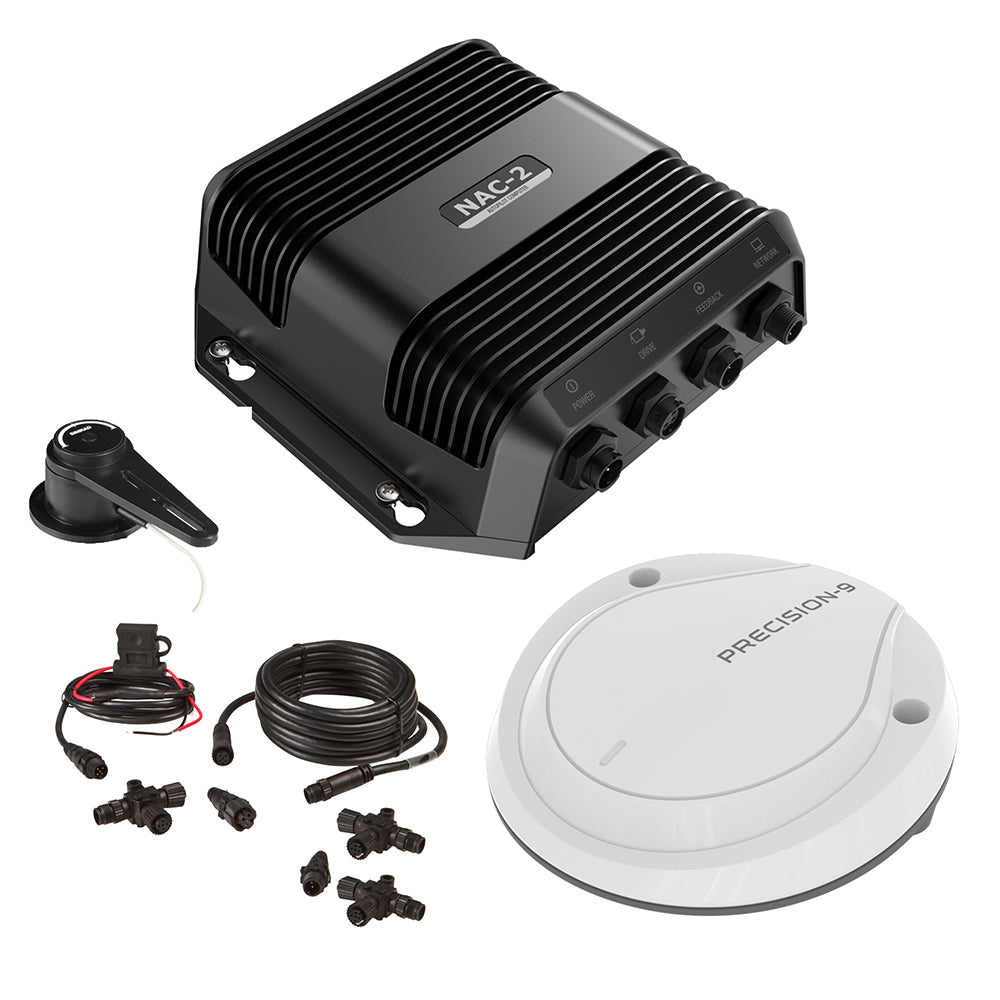

NAC-2 Autopilot Core Pack - NAC-2, Precision-9, RF25N & N2k Starter Kit

Comprising of the high-current NAC-2 autopilot computer, Precision-9 compass and RF-25 rudder feedback unit ideal for smaller vessels, designed to run small hydraulic drives and mechanical drives for vessels up to 10M (33') in length.

The NAC-2 Autopilot Computer is the brains behind your autopilot system. NAC-2 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-2 was designed for boats up to 10M (33') in length and is suitable for low-current hydraulic drives, mechanical drives, or solenoid valves with a current rating of 8 Amps continuous (12 Amps peak).

Precision-9 Compass
The Precision-9 Compass. Outputs Heading (20 hZ), Rate Of Turn (20 hZ), roll, and pitch (10 hZ) over the NMEA 2000® network.

RF25N NMEA2000
RF25N, Rudder Feedback Unit: With transmission link and 5M (16.5') NMEA2000 Micro-C cable

N2k Backbone Starter Kit
NMEA 2000 Micro-C Network starter kit: Includes Network power cable, 4.5M (15') N2K cable, 3 x T-connectors, 2 x network terminators

Specifications:

  • Operating temperature: -25°C to +55°C (13°F to 131°F)
  • Protection: Splashproof, IPx5
  • Weight: 0.6 kg (1.3 lbs)
  • Overall Dimensions: Width: 7.1" \ 180mm / Height: 2.2" \ 57mm
  • Power supply: 9-31.2 V DC
  • Load: 140 mA + drive unit load
  • Performance: Drive: 8 A cont., 16A for 1s
  • Network: 1xMicroC (NMEA2000)
  • Feedback: Variable voltage/resistive 0-5V
  • Drive output: To PUMP-1 or HELM-1
  • Power supply: 9-31.2 V DC
  • Solenoid: 12/24V DC, common, load range 10mA to 10A, off current <1mA
  • Clutch: 12/24V DC, min 10mA, max 3A

Specifications:

  • Steering Type: Hydraulic
  • Box Dimensions: 10"H x 16"W x 16"L WT: 9.2 lbs
  • UPC: 9420024155639

Owner's Manual (pdf)
