Simrad  |  SKU: EM-63376  |  Barcode: 9420024108147

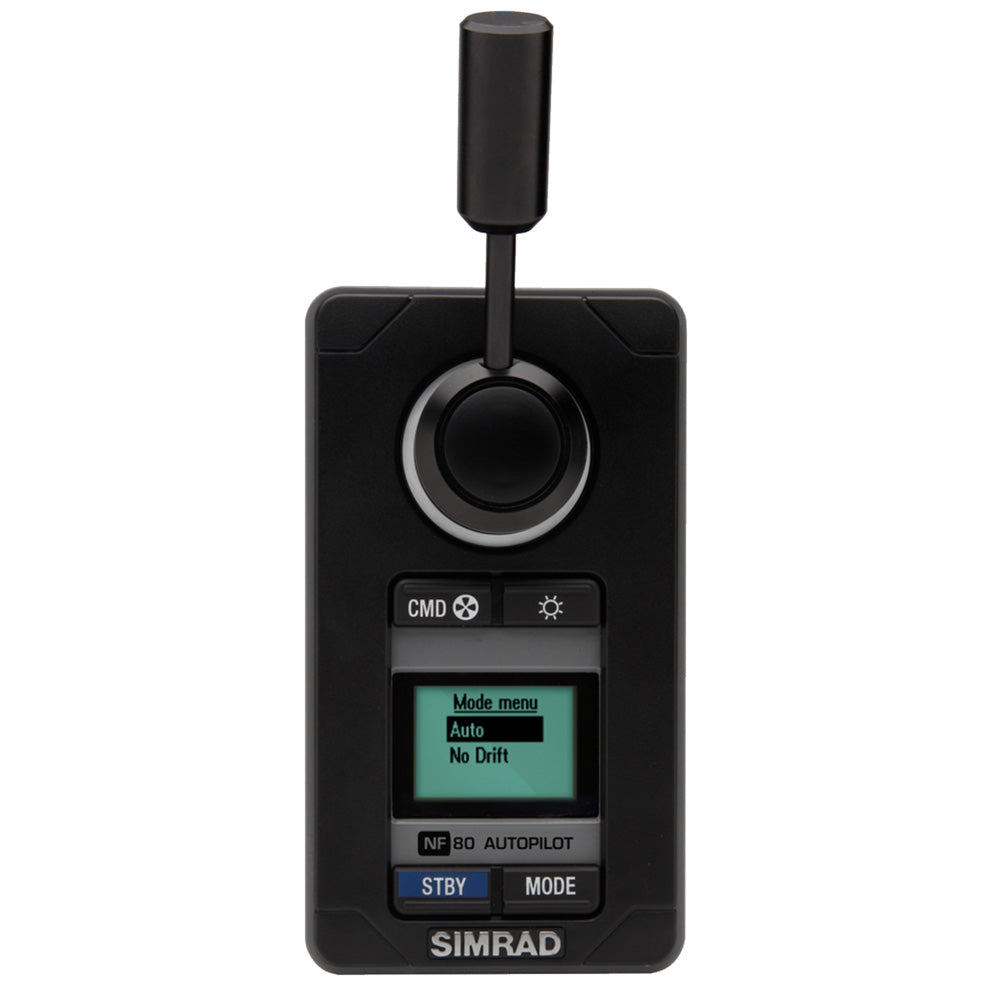

Simrad NF80 Non Follow Up Remote [000-10185-001]

Sale price $1,112.99 Regular price $1,201.00

SHIPS SAME DAY BEFORE 3PM CST! Shipping Policy


Refund & Return Policy

Returns are accepted within 30 days after shipment. To be eligible for a return, items must be unused, uninstalled, and in their original packaging, and proof of purchase is required. The following items are not eligible for return: Installed or used products, clearance or final-sale items, trolling motors, programmed AIS units, KVH Starlink products that are registered or opened, special-order products, or products displaying the notice “This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.” in their description. Opened or unsealed DVDs, CDs, or cartography (unless defective) are not eligible for return. Return Merchandise Authorization (RMA) numbers are required for all returns. Learn more.

Shipping Policy

Egret Marine ships marine parts and accessories within the contiguous United States only. Orders are typically processed same day if placed before 3pm CST, excluding weekends and holidays. Learn more.

Product Details

NF80 Non Follow Up Remote

The NF80 works with your Simrad autopilot system, adding a dedicated lever for heading adjustments, course changes, or hand steering. Non Follow Up control means the rudder turns while the lever is held to port or starboard, and remains at its current angle when the lever is released.

Dedicated Autopilot Control

Our steering remotes offer intuitive controls and a 1.7-inch display that can be used to make course, heading rudder angle, or autopilot mode changes from anywhere onboard. Adding a remote to your system can provide dedicated steering controls for your fully integrated autopilot system, complementing the touchscreen controls on your multifunction display. Remotes can also enable autopilot control from multiple stations: perfect for fly-bridges and other dual-helm setups.

Direct Rudder Control with Non Follow Up Steering

Your Simrad autopilot not only keeps you on the course but lets you hand-steer from any autopilot station on board. The NF80 offers Non Follow Up steering, which puts you in direct control of your boat’s rudder. Move the spring-loaded steering lever to port or starboard, and the rudder will begin to turn in the same direction. The rudder will continue to turn until the lever is released, then hold its current angle until a new angle is set.

Easy Installation

This wired remote can be mounted almost anywhere. A simple design allows flush-mount installation using the included accessories, or external mounting to a desktop or bulkhead via an optional mounting kit. The remote connects to your Simrad autopilot system via a single NMEA 2000® cable into your existing network, offering plug-and-play installation with no complex wiring required.

Features:

  • Non Follow Up steering (rudder turns while the lever is held to port or starboard)
  • Rudder stops at its current position when the lever is released
  • Integrated 1.7-inch display enables remote autopilot control
  • Easy desktop/bulkhead or flush-mount installation
  • Simple plug-and-play NMEA 2000® connectivity

Specifications:

  • Compass Safe: 0,4m (15,75")
  • Weight: 0,5kg (1,1lbs)
  • Power Consumption Max: 110mA
  • Viewing Angles: 12 o'clock
  • Supply Voltage: 12-16V via CAN
  • Display Resolution: 128 x 64
  • NMEA 2000 Connectivity: 1x CAN Micro-C port, 1 LEN
  • Warranty Period: 2 years
  • Operating Temperature Range: -25C to +55C (-13F to +131F)
  • Storage Temperature Range: -30C to +70C (-22F to +158F)
  • Dimensions W x H x D: 80 x 144 x 40mm (3,15 x 5,67 x 1,55")
  • Languages: English
  • Mounting Type: Flush, Bulkhead
  • Waterproof Rating: IPx6
  • Interface: Keypad and lever
  • Steering Modes: Non Follow Up (NFU), Auto, NoDrift, Nav
  • Backlight Color: White

Specifications:

  • Type: Parts
  • Box Dimensions: 5"H x 6"W x 9"L WT: 2.15 lbs
  • UPC: 9420024108147

Owner's Manual (pdf)
