Why Your Antenna Matters as Much as Your Radio

Most boaters spend considerable time choosing the right VHF radio and almost no time thinking about the antenna. That's backwards. Your VHF radio's range is determined primarily by two things: antenna height and antenna gain. A $150 radio with a well-chosen, properly installed antenna will consistently outperform a $500 radio with a poor antenna installation.

This guide explains the key variables so you can make an informed choice and get the most range out of your VHF system.

How VHF Radio Propagation Works

VHF radio waves travel in essentially straight lines — they don't follow the curvature of the earth. This means VHF communication is fundamentally limited by line of sight between antennas. The higher your antenna, the farther the radio horizon, and the greater your potential range.

This is why a fixed-mount radio with a masthead antenna on a sailboat can communicate over much greater distances than a handheld radio held at deck level — even though the handheld may have a similar transmit power.

The practical formula for radio horizon distance (in nautical miles):

Range ≈ 1.23 × (√Antenna Height in feet)

Example: An antenna mounted 16 feet above the waterline has a radio horizon of approximately 4.9 nautical miles to another antenna at water level. Two antennas each at 16 feet can communicate up to ~9.8 nautical miles in ideal conditions.

Understanding Antenna Gain

Antenna gain is measured in dBi (decibels relative to an isotropic radiator) or sometimes dBd (decibels relative to a dipole). It describes how the antenna focuses its radiated energy compared to a theoretical reference antenna that radiates equally in all directions.

A higher-gain antenna doesn't create more power — it reshapes the radiation pattern, squeezing energy into a flatter, more horizontal beam. This increases range along the water's surface but reduces the antenna's ability to communicate with aircraft or vessels at very different elevations.

Common Gain Ratings and What They Mean

Gain	Antenna Length (approx.)	Best For
3 dBi	3 feet	Small boats, rough water, sailboat masthead
6 dBi	8 feet	Most powerboats, center consoles, cruisers
9 dBi	15–17 feet	Large powerboats, trawlers, commercial vessels

More Gain Isn't Always Better

This is the most important concept to understand about VHF antennas. Higher gain compresses the radiation pattern into a flatter disk. On a boat that rolls and pitches in a seaway, a very high-gain antenna can actually point its beam above or below the horizon during a roll — causing the signal to momentarily drop out.

Calm, protected waters (lakes, bays, ICW): 6–9 dBi is appropriate — minimal rolling, maximum range
Offshore or rough water: 3–6 dBi is safer — wider vertical pattern tolerates boat motion better
Sailboat masthead: 3 dBi — the height of the masthead provides the range; high gain at that height would over-compress the pattern

Antenna Height: The Most Important Variable

If you can only optimize one thing, optimize height. Doubling antenna height increases your radio horizon by approximately 40%. Mounting options by boat type:

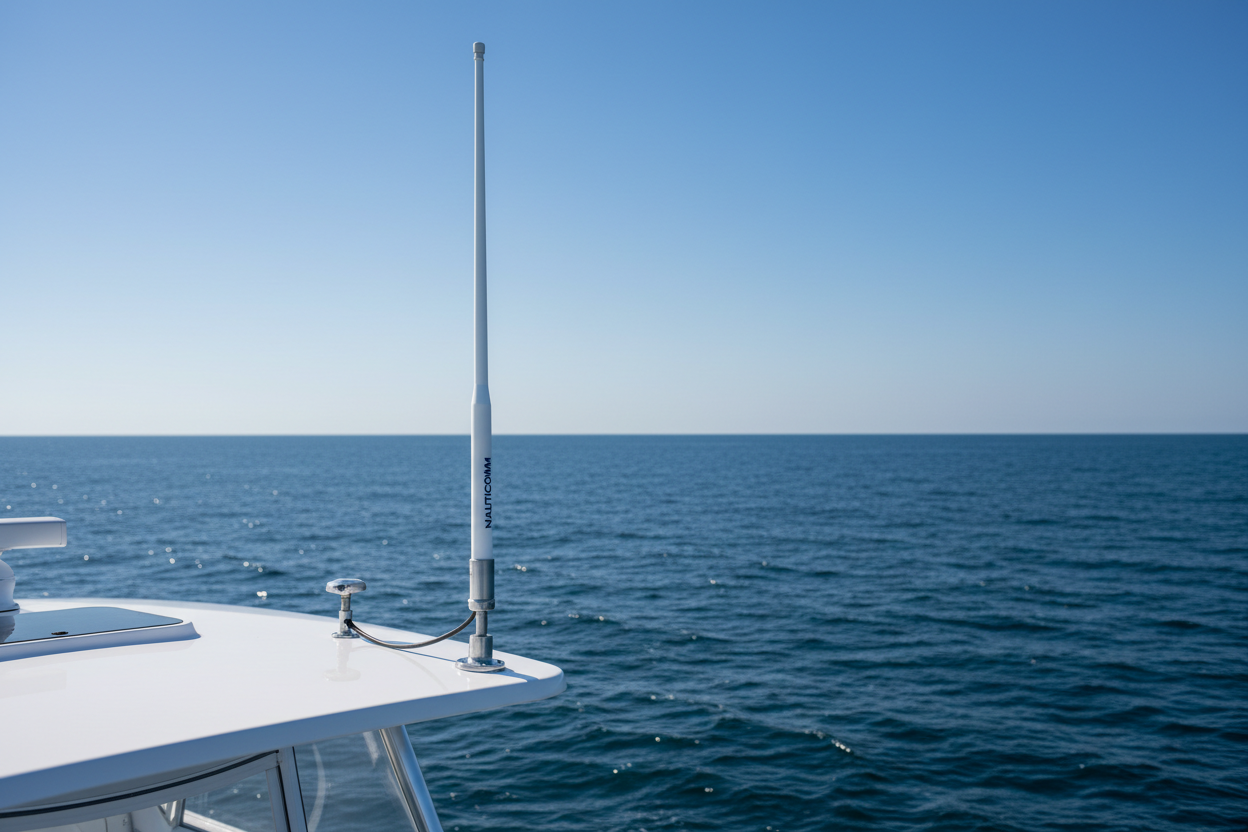

Center console / bass boat: T-top or hardtop rail mount — typically 8–12 feet above waterline
Cuddy cabin / express cruiser: Radar arch or hardtop — 10–15 feet
Flybridge: Flybridge rail or mast — 15–25 feet
Sailboat: Masthead — 40– 60+ feet on a typical cruising sailboat

Even moving an antenna from a gunwale mount to a T-top can add 4–6 feet of height and meaningfully increase range.

Cable Loss: The Hidden Range Killer

Every foot of coaxial cable between your radio and antenna absorbs some of the transmitted signal. This is called cable loss (or insertion loss), measured in dB per 100 feet at a given frequency. At VHF frequencies (156–174 MHz), cable loss is significant and must be accounted for in your installation.

Common Coax Cable Types for Marine VHF

Cable Type	Loss at 150 MHz (per 100 ft)	Best For
RG-58	~4.5 dB	Short runs only (<10 feet); not recommended for VHF
RG-8X	~2.5 dB	Short to medium runs; good compromise of size and loss
RG-8U / LMR-400	~1.3 dB	Long runs; best performance, larger diameter

Practical example: A 30-foot run of RG-58 loses about 1.35 dB — roughly equivalent to cutting your transmit power by 25%. The same run in RG-8U loses only 0.4 dB. On a long cable run (masthead on a 40-foot sailboat), the difference between cable types can be 3–4 dB — a very significant impact on range.

Cable Loss Rules of Thumb

Runs under 20 feet: RG-8X is fine
Runs 20–50 feet: Use RG-8X minimum; RG-8U preferred
Runs over 50 feet: Use RG-8U or equivalent low-loss cable
Every connector adds approximately 0.1–0.5 dB of loss — minimize the number of connectors in the run

Connector Types

Marine VHF antennas and radios use PL-259 (UHF) connectors as the standard. Despite the "UHF" designation, PL-259 is the universal standard for marine VHF. Key points:

Most fixed-mount VHF radios have an SO-239 socket (the female counterpart to the PL-259 plug)
Most marine VHF antennas terminate in a PL-259 plug or have a pre-terminated cable
Use silver-plated or gold-plated connectors for marine use — they resist corrosion better than plain brass
Seal all exterior connections with self-amalgamating tape or coax seal to prevent water ingress

Antenna Construction and Durability

Marine VHF antennas live in a harsh environment. Look for:

Fiberglass radome: Protects the internal antenna element from UV, salt, and impact. Standard on quality marine antennas.
Stainless steel hardware: Mounting hardware should be 316 stainless to resist corrosion
UV-stabilized materials: Cheaper antennas yellow and become brittle after a few seasons in the sun
Sealed base: Water must not be able to enter the antenna base and wick down the coax

Installation Tips

Mount vertically: VHF antennas must be mounted as close to vertical as possible. A tilted antenna loses gain and distorts the radiation pattern. Use a ratcheting antenna mount if your mounting surface is angled.
Keep cable runs straight: Avoid sharp bends in the coax — bends increase loss and can damage the cable's internal structure over time. Minimum bend radius is typically 5x the cable diameter.
Seal all deck penetrations: Any hole through the deck for cable routing must be sealed with a waterproof cable entry fitting or marine sealant
Test with a SWR meter: After installation, a Standing Wave Ratio (SWR) test confirms the antenna and cable are properly matched. SWR below 2:1 is acceptable; below 1.5:1 is excellent. High SWR indicates a connection problem or antenna fault.
Keep away from obstructions: Mount the antenna so it has clear sky in all directions — metal structures within a few feet can detune the antenna and reduce range

Choosing the Right Antenna: Quick Decision Guide

Boat Type / Use	Recommended Gain	Recommended Cable
Bass boat / jon boat (T-top)	6 dBi	RG-8X
Center console (offshore)	3–6 dBi	RG-8X or RG-8U
Express cruiser / flybridge	6 dBi	RG-8U
Sailboat (deck mount)	6 dBi	RG-8U
Sailboat (masthead)	3 dBi	RG-8U (low loss essential)
Trawler / large powerboat	6–9 dBi	RG-8U
